Continuing testing Oracle Database@Google features, this time I wanted to test provisioning using gcloud CLI on Google and seeing how it works out. Google has documentation on using CLI to provision Autonomous Database (ADB) here: https://cloud.google.com/sdk/gcloud/reference/oracle-database/autonomous-databases/create
Some of the variables are not right away clear, but in addition to the example I wanted to provision DB with a private endpoint, not with public.

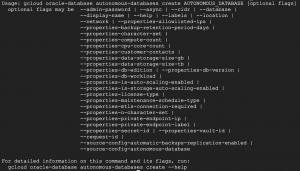

When you run gcloud command to create ADB without any parameters, you’ll also get the full list of parameters that can be used, similarly using –help flag gives you details for each parameter.
After some trial and error due to me being new to gcloud CLI, I established that I need to find my project id and path for the network. The path is described in documentation link but I wasn’t fully sure on the actual path so did some digging to find out the correct commands.
Creating ADB
Below I’m setting also my cloud shell to use my project, I don’t think that’s required though as I define the project id in the ADB create command as well.
See the commands from below!
## Set my project for gcloud simo@cloudshell:~$ gcloud config set project 111572427111 Updated property [core/project]. ## Get network path from the selfLink simo@cloudshell:~$ gcloud compute networks describe vpc-autonomous --project=tfg autoCreateSubnetworks: false creationTimestamp: '2024-10-02T09:40:36.069-07:00' description: For Autonomous DB id: '1116742841884068111' kind: compute#network mtu: 1460 name: vpc-autonomous networkFirewallPolicyEnforcementOrder: AFTER_CLASSIC_FIREWALL routingConfig: bgpBestPathSelectionMode: LEGACY routingMode: REGIONAL selfLink: https://www.googleapis.com/compute/v1/projects/tfg/global/networks/vpc-autonomous selfLinkWithId: https://www.googleapis.com/compute/v1/projects/tfg/global/networks/9066742841884068203 subnetworks: - https://www.googleapis.com/compute/v1/projects/tfg/regions/us-east4/subnetworks/vm-subnet x_gcloud_bgp_routing_mode: REGIONAL x_gcloud_subnet_mode: CUSTOM ## Create Autonomous Database with Private Endpoint simo@cloudshell:~ (111572427111)$ gcloud oracle-database autonomous-databases create gcloudatp --location=us-east4 --display-name=gcloudatp --network=projects/tfg/global/networks/vpc-autonomous --database=gcloudatp --admin-password=My_Only_Password_12 --cidr=10.0.1.0/24 --properties-compute-count=2 --properties-db-version=23ai --properties-license-type=LICENSE_INCLUDED --properties-db-workload=OLTP --project=111572427111 --properties-data-storage-size-gb=200 --properties-private-endpoint-ip=10.0.1.10 Create request issued for: [gcloudatp] Waiting for operation [projects/111572427111/locations/us-east4/operations/operation-1748624301002-6365d524e90b4-4718917f-9e18b5f2] to complete...done. Created autonomousDatabase [gcloudatp].
After few minutes, I do have ADB created in my GCP project with a private endpoint. Not too bad!

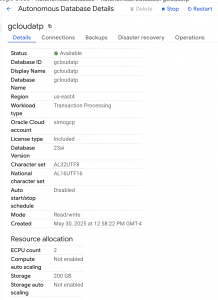

Now it’s time to take a peak on the Console what got created.

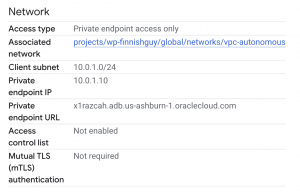

Mostly interested on the network, I do see it only has private endpoint with the IP I gave and everything else looks according to what I specified.
NOTE: You don’t necessarily need to provide the private IP(thanks Andy!) – if you only specify the CIDR it’ll pick up free IP from the network you specified.
Additional Commands
Couple handy commands that are available with CLI, list and describe. You can get all the ADB details in the region via CLI list command which could be handy for any script you need to do. For details on a single ADB – use describe with: gcloud oracle-database autonomous-databases describe gcloudatp –location=us-east4
Below I’m listing all(my one and only) ADB within us-east4 region.
gcloud oracle-database autonomous-databases list --location=us-east4
---
cidr: 10.0.1.0/24
createTime: '2025-05-30T16:58:22.997294028Z'
database: gcloudatp
displayName: gcloudatp
entitlementId: a5ff3b22-4ea2-4c45-8ea6-3d0497bf7de3
name: projects/991572427707/locations/us-east4/autonomousDatabases/gcloudatp
network: projects/wp-finnishguy/global/networks/vpc-autonomous
properties:
apexDetails:
ordsVersion: 25.1.0.100.1652
backupRetentionPeriodDays: 60
characterSet: AL32UTF8
computeCount: 2.0
connectionStrings:
allConnectionStrings:
high: adb.us-ashburn-1.oraclecloud.com:1522/gdbed68d29e37bc_gcloudatp_high.adb.oraclecloud.com
low: adb.us-ashburn-1.oraclecloud.com:1522/gdbed68d29e37bc_gcloudatp_low.adb.oraclecloud.com
medium: adb.us-ashburn-1.oraclecloud.com:1522/gdbed68d29e37bc_gcloudatp_medium.adb.oraclecloud.com
high: adb.us-ashburn-1.oraclecloud.com:1522/gdbed68d29e37bc_gcloudatp_high.adb.oraclecloud.com
low: adb.us-ashburn-1.oraclecloud.com:1522/gdbed68d29e37bc_gcloudatp_low.adb.oraclecloud.com
medium: adb.us-ashburn-1.oraclecloud.com:1522/gdbed68d29e37bc_gcloudatp_medium.adb.oraclecloud.com
profiles:
- consumerGroup: HIGH
displayName: gcloudatp_high
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: SERVER
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1521)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_high.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: LOW
displayName: gcloudatp_low
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: SERVER
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1521)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_low.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: MEDIUM
displayName: gcloudatp_medium
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: SERVER
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1521)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_medium.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: TP
displayName: gcloudatp_tp
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: SERVER
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1521)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_tp.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: TPURGENT
displayName: gcloudatp_tpurgent
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: SERVER
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1521)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_tpurgent.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: HIGH
displayName: gcloudatp_high
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: MUTUAL
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1522)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_high.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: LOW
displayName: gcloudatp_low
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: MUTUAL
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1522)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_low.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: MEDIUM
displayName: gcloudatp_medium
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: MUTUAL
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1522)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_medium.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: TP
displayName: gcloudatp_tp
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: MUTUAL
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1522)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_tp.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
- consumerGroup: TPURGENT
displayName: gcloudatp_tpurgent
hostFormat: FQDN
protocol: TCPS
sessionMode: DIRECT
syntaxFormat: LONG
tlsAuthentication: MUTUAL
value: (description= (retry_count=20)(retry_delay=3)(address=(protocol=tcps)(port=1522)(host=x1razcah.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=gdbed68d29e37bc_gcloudatp_tpurgent.adb.oraclecloud.com))(security=(ssl_server_dn_match=no)))
connectionUrls:
apexUri: https://x1razcah.adb.us-ashburn-1.oraclecloudapps.com/ords/apex
databaseTransformsUri: https://x1razcah.adb.us-ashburn-1.oraclecloudapps.com/odi/
graphStudioUri: https://x1razcah.adb.us-ashburn-1.oraclecloudapps.com/graphstudio/
machineLearningNotebookUri: https://x1razcah.adb.us-ashburn-1.oraclecloudapps.com/oml/
machineLearningUserManagementUri: https://x1razcah.adb.us-ashburn-1.oraclecloudapps.com/omlusers/
ordsUri: https://x1razcah.adb.us-ashburn-1.oraclecloudapps.com/ords/
sqlDevWebUri: https://x1razcah.adb.us-ashburn-1.oraclecloudapps.com/ords/sql-developer
dataSafeState: NOT_REGISTERED
dataStorageSizeGb: 200
dbVersion: 23ai
dbWorkload: OLTP
licenseType: LICENSE_INCLUDED
localDisasterRecoveryType: BACKUP_BASED
localStandbyDb:
state: STANDBY
maintenanceBeginTime: '2025-06-01T04:00:00Z'
maintenanceEndTime: '2025-06-01T06:00:00Z'
maintenanceScheduleType: REGULAR
nCharacterSet: AL16UTF16
ocid: ocid1.autonomousdatabase.oc1.iad.anuwcljruc6vv7yaprahzphkjpcoqvwu3wzl5qicbpz4xrgdw2sczzf52oja
openMode: READ_WRITE
operationsInsightsState: NOT_ENABLED
permissionLevel: UNRESTRICTED
privateEndpoint: x1razcah.adb.us-ashburn-1.oraclecloud.com
privateEndpointIp: 10.0.1.10
privateEndpointLabel: x1razcah
state: AVAILABLE
supportedCloneRegions:
- AGA
- FRA
Deleting ADB via CLI
Final command to remember is delete, which is as simple as:
gcloud oracle-database autonomous-databases delete gcloudatp --location=us-east4 You are about to delete autonomousDatabase [gcloudatp] Do you want to continue (Y/n)? y Delete request issued for: [gcloudatp] Waiting for operation [projects/111572427111/locations/us-east4/operations/operation-1748628306511-6365e410dc51a-4206b666-f93aadd6] to complete...done.
I can not only check from GCP Console that the database is terminated but OCI Console shows the same as well.
Delete command ran way longer vs just the database termination, I could see DB terminated after minute or two but CLI command ran for 20 minutes.
Summary
Creating Autonomous Database on Google can be done also via CLI (or with Terraform) – if you’re not fully familiar with Google APIs or commands you might have to do some learning on parameters and what is really required.
Next time, I will take a look on how to use Database Tools for Autonomous Database, they work similarly as in OCI but if you end up here on how to use ADB on GCP, it’ll be good learning on how to access and use the tools.
Database Tools is awesome product set that Oracle has with Autonomous Database!
