I’m a huge fan of using tools available to help troubleshoot any issues there are. Luckily OCI has many free tools available such as Network Path Analyzer, which I’ve touched in the past.

This time we’re going to look on VCN Flow Logs, I think as a starting point we should be looking on enabling VCN Flow Logs to give you extra idea on what traffic is going around in your subnets.

Flow Logs actually helped me to troubleshoot one really weird issue with Oracle EBS using Load Balancer, one of the Oracle Forms page was calling additional EBS package, which in turn called one of the application server ports which we didn’t know. We hadn’t allowed traffic from Load Balancer subnet towards that port in application server subnet, and with help of Flow Logs, we could see connection getting rejected.

VCN Flow Logs can be enabled on different levels: VCN, subnet, VNIC or resources. In this example, I’m enabling them on two subnets.

When you go to subnet view on the OCI Console, you have option to browse into Logs. There’s a simple option to enable logs like below, one pre-requisite is that you have to have Log Group created (vcnflowlogs in below picture).

Enabling VCN Flow Logs

I’ve repeated same for my other subnet also.

I have two compute instances, one in each subnet. Let’s see what happens when I initiate SSH traffic from one compute VM to another and my subnet allows the traffic in the security list.

You can navigate by clicking the Log Name and it will take you to OCI Logging Service to respective log as below.

VCN Flow Logs in Logging Service

I expect traffic now to be allowed from source to destination and looking the logs below explore log, I see a line appearing few minutes after.

Row from Flow Logs telling me that traffic from source to destination was ACCEPT(ed).

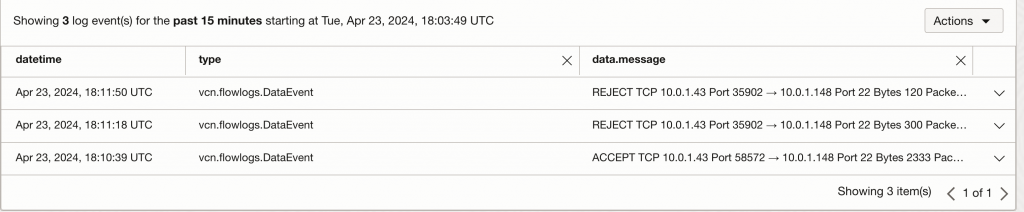

I want to repeat same test and remove the security list rule allowing traffic to port 22 on destination server, sure enough, SSH connection times out and I can see below in Flow Logs.

Traffic is now REJECT(ed)

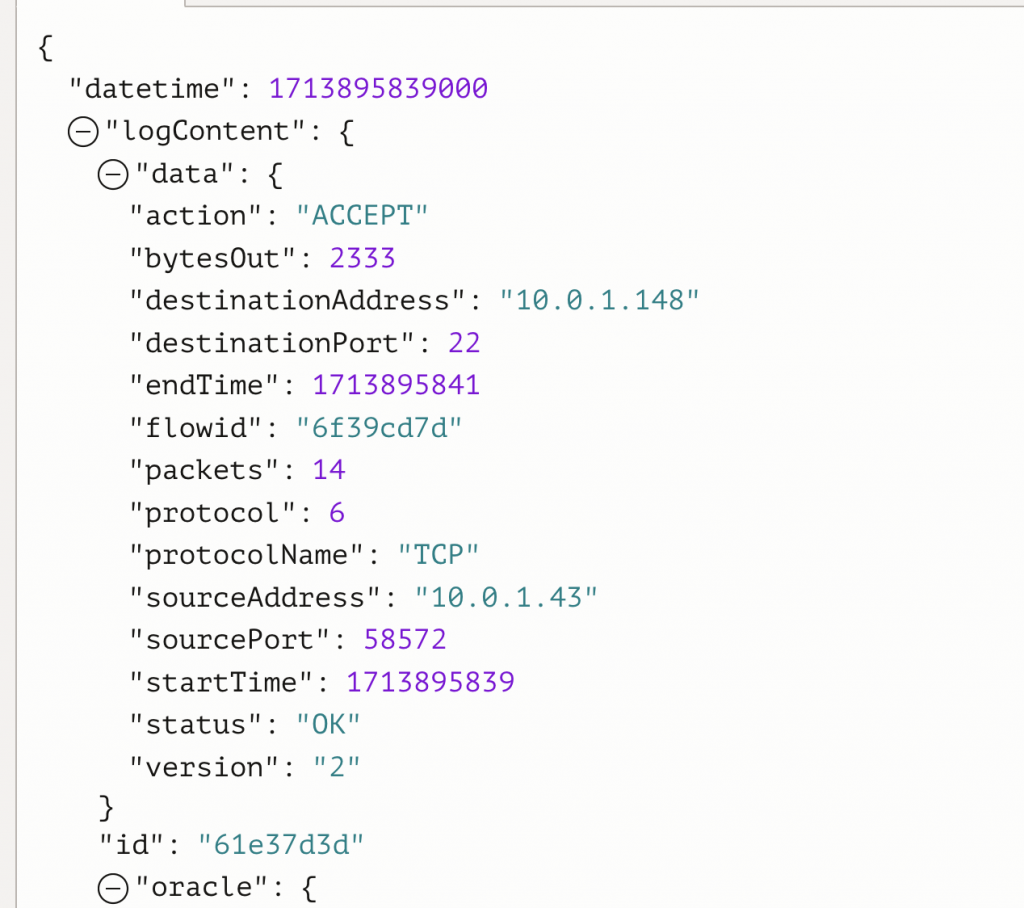

On the right side you have down arrow which let’s you drill down into details of the event, when I expand the row I see all data that is available.

Packet details in VCN Flow Logs

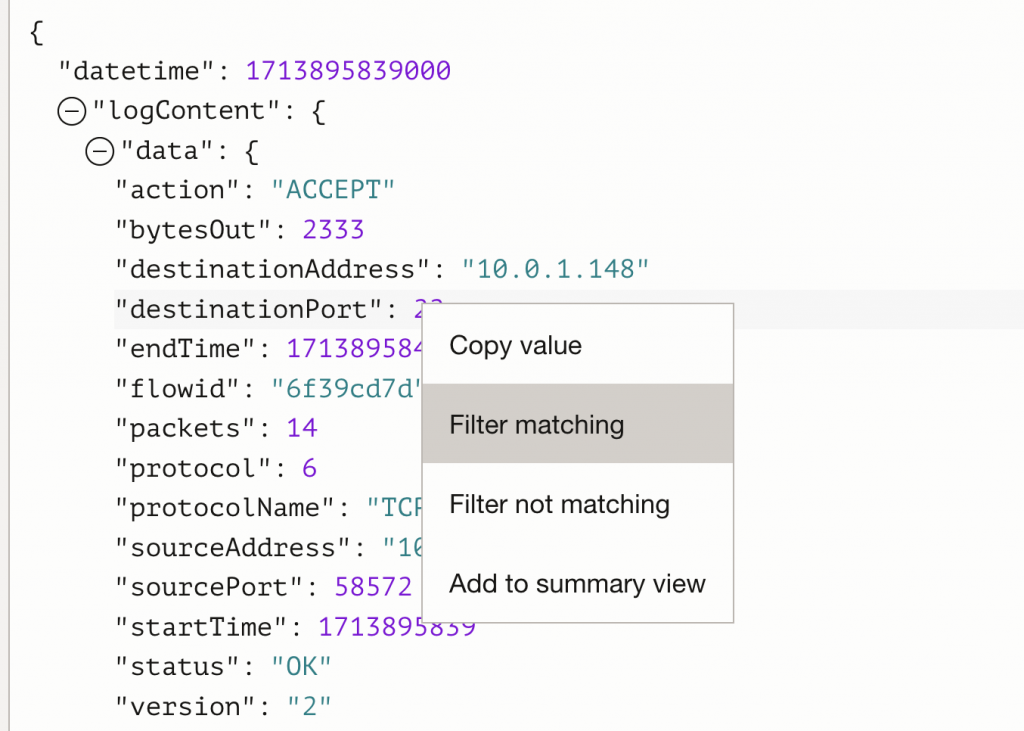

What Oracle has done and what has helped me troubleshooting, is also filtering the data – just right click on specific row and you get option to filter for example by port 22 or you could use to filter all data where action is REJECT.

Filtering data

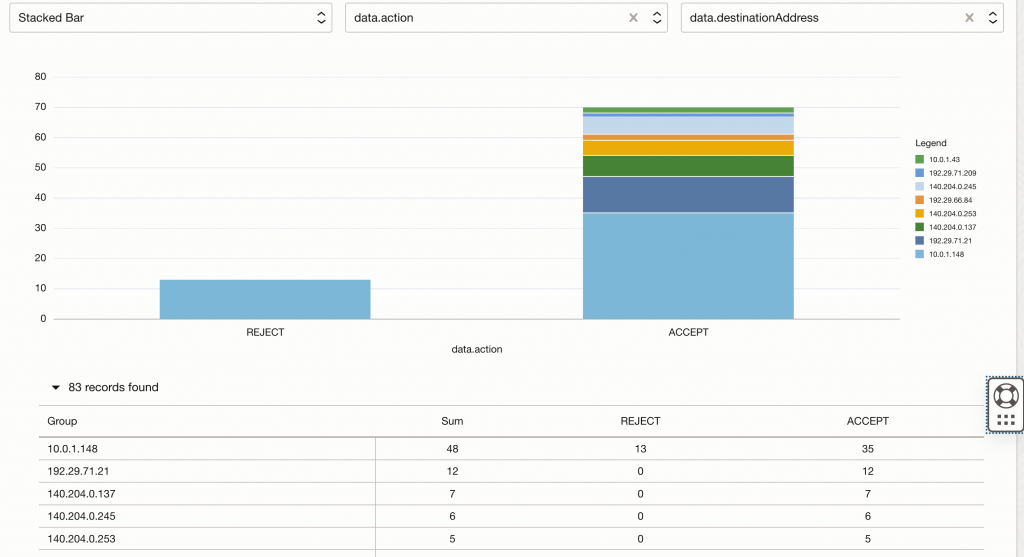

Further on you can also group data for example by IP, Action etc. Useful to see if you have one problematic server for example, whatever you are trying to solve!


Enabling VCN Flow Logs for troubleshooting and monitoring should be one of the actions you take on building the infrastructure. Above simple examples are meant to show you how easy it is to do, and how quickly you can get logs enabled to help you. You can always ingest logs to some third party system as well when needed.
